Our CNC Punching capabilities are probably second-to-none in Europe. With in-depth expertise, access to the latest technology and extensive CNC Punching experience, Fabricated Products is a leading supplier for this service. All of our manufacturing processes meet or exceed the requirements of ISO 9001:2008.

TruPunch 5000 CNC Punching Machines

The company has three TruPunch 5000 CNC Punching Machines. This model is recognised as the fastest and most productive punching machine in the world, guaranteeing customers a speedy turnaround on orders.

With a stroke rate of up to 1,400 strokes/min or marking up to 2800 strokes/min and the simultaneous increase of rotational speed and acceleration in the C axis – this machine operates at unprecedented speeds. It can deliver contouring, forming and tapping at a rapid pace and it is capable of producing a Scratch Free part.

Maximum Sheet Thickness 8 mm for Steel and Aluminium, 3mm Stainless Steel
Maximum Punching Force 220 KN
Materials Aluminium
Brass
Copper
Galvanised Steel
Stainless Steel
Mild Steel
Work Area 2500 x 1250 mm & 3000 X 1500mm with repositioning.
Accuracy ± 0.1mm
Repeatability ± 0.03 mm.

Given the speed and the accuracy of this manufacturing service, Fabricated Products has worked with a broad range of industries using the TruPunch 5000’s to produce a huge variety of sheet metal parts.

Comprehensive Range of Related Services

In addition to our state-of-the-art CNC Punching equipment, Fabricated Products offers a full set of related CNC services including Forming, Milling and Turning, as well as conventional Cutting services with the use of a Guillotine and Horizontal Saw, where appropriate.

Learn more about our comprehensive set of Capabilities and please do contact us to discuss your CNC Punching requirements.

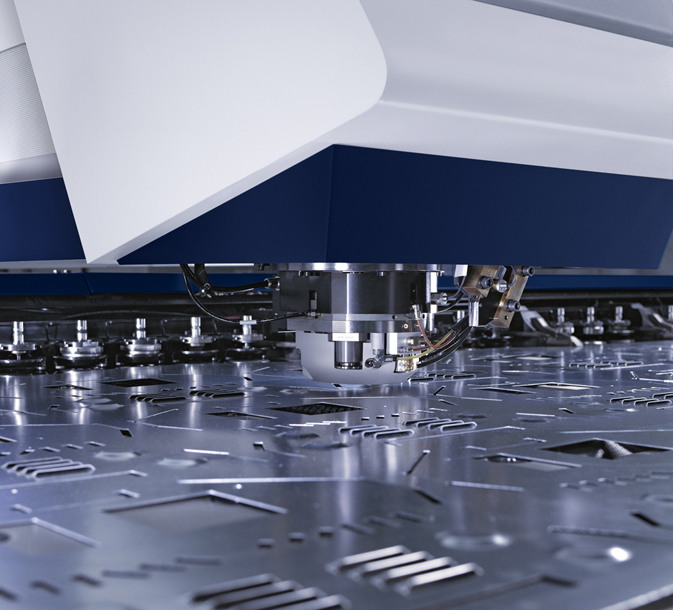

TruPunch_5000_Stanzkopf_T5076

TruPunch 5000

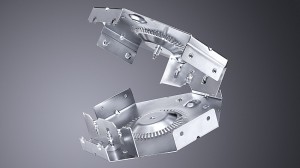

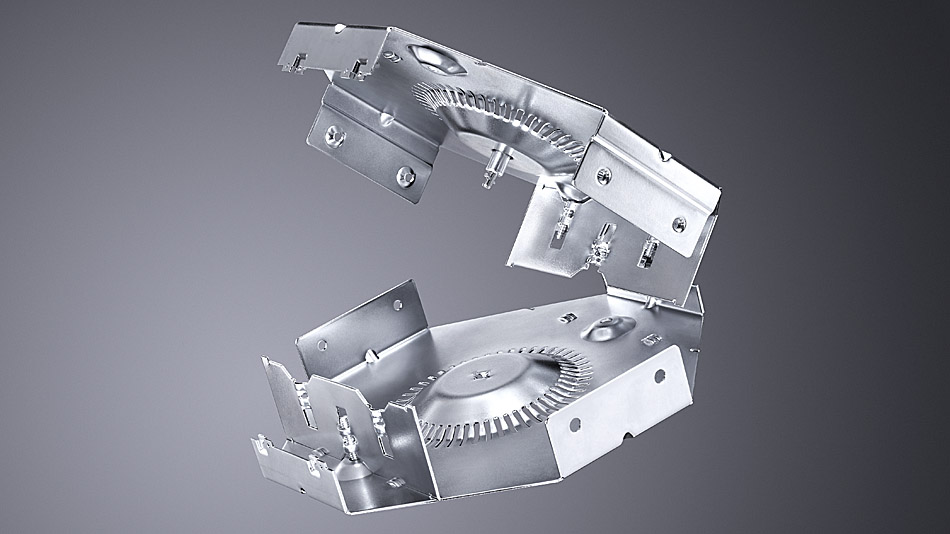

Stanzwerkzeuge_Musterteil

Stanzwerkzeuge Musterteil

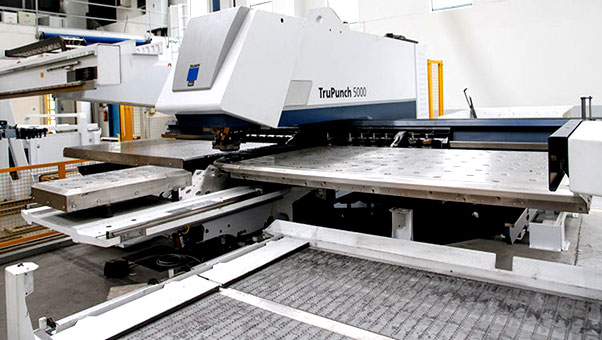

Trupunch 5000

Trupunch 5000

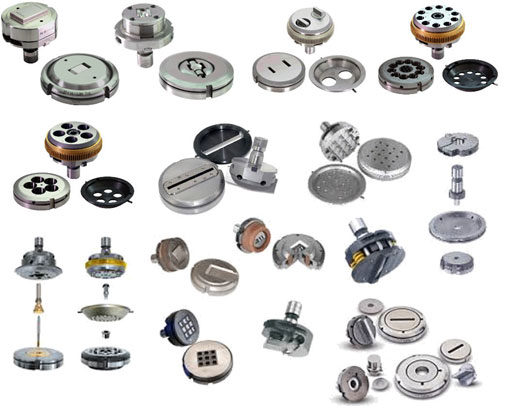

We have a vast and extensive library of tooling from standard punches to specials including forming, tapping, countersinking, special shapes, embossing, extrusion etc.

Tooling
